Metal Manufacturing Metrology


ZEISS metrology solutions help manufacturers verify dimensions, tolerances, form and internal features across machining, forming, casting and other metal production processes.

Metal processing can change the geometry of a part

Machining forces, thermal effects, material stresses, tooling wear and process variation can all affect the final geometry of a metal component.

Measurement provides the data needed to determine whether a component meets its dimensional and geometric requirements, and where deviations are occurring.

ZEISS systems can be used across dimensional inspection, surface measurement, CAD comparison and non-destructive inspection of internal features.

Dimensions Check critical part dimensions
Geometry Evaluate form and GD&T
Internal features Inspect inaccessible geometry

Common inspection problems in metal production

Different production processes create different measurement requirements. Inspection needs to match the geometry, tolerance and type of deviation being investigated.

01

Dimensional deviation

Identify dimensional errors in critical features, surfaces, holes and interfaces.

02

Tool wear

Detect geometry changes caused by cutting tool wear and machining variation.

03

Form and position

Verify flatness, roundness, cylindricity, perpendicularity and other geometric requirements.

04

Warpage and distortion

Analyse deformation resulting from forming, heat treatment and material stresses.

05

Internal defects

Inspect porosity, shrinkage, cracks and inclusions inside cast or manufactured components.

06

Batch variation

Compare production results and identify changes between batches.

What needs to be measured?

The appropriate inspection method depends on component geometry, material, tolerance requirements, production volume and the information required from the measurement.

01 / DIMENSION

Dimensional accuracy

Verify critical dimensions against engineering requirements.

02 / GD&T

Geometric tolerances

Evaluate form, orientation, location and runout requirements.

03 / FORM

Form and profile

Measure flatness, roundness, cylindricity and complex profiles.

04 / SURFACE

Surface geometry

Capture complex surfaces and compare them against CAD.

05 / INTERNAL

Internal features

Inspect inaccessible geometry using industrial CT.

06 / DEFECT

Porosity and cracks

Identify internal defects without destroying the component.

07 / ASSEMBLY

Fit and alignment

Verify interfaces and relationships between assembled parts.

08 / FAI

First article inspection

Validate new or modified components before production.

Measurement from tooling to production

Inspection can be introduced at different points in the manufacturing process, from tooling validation and first article inspection through to production monitoring.

01

Tooling

Validate tooling geometry before production begins.

02

First article

Confirm dimensions, GD&T and critical features.

03

Production

Monitor variation and maintain repeatable results.

04

Investigation

Use measurement data to identify and correct deviations.

Inspection of precision-machined components

CMM and optical measurement solutions can be used to verify dimensions, hole positions, form and GD&T requirements on machined metal components.

Dimensional inspection GD&T verification Hole position Form and profile CAD comparison First article inspection

Internal inspection of cast components

Industrial CT provides non-destructive access to internal geometry and defects that cannot be measured from the outside of a component.

Internal structures Porosity detection Shrinkage defects Internal cracks Wall thickness Non-destructive inspection

ZEISS measurement systems for different inspection requirements

GTS is an authorised ZEISS Business Partner, providing access to coordinate measurement, 3D scanning, industrial CT and inspection software for manufacturing applications.

CMM ZEISS SPECTRUM CMM

ZEISS SPECTRUM

Coordinate measurement for dimensional verification, GD&T and critical tolerance inspection.

View ZEISS SPECTRUM
3D Scanning ZEISS ATOS Q 3D scanner

ATOS Q

Full-field optical measurement for complex surfaces, CAD comparison and deviation analysis.

View ATOS Q

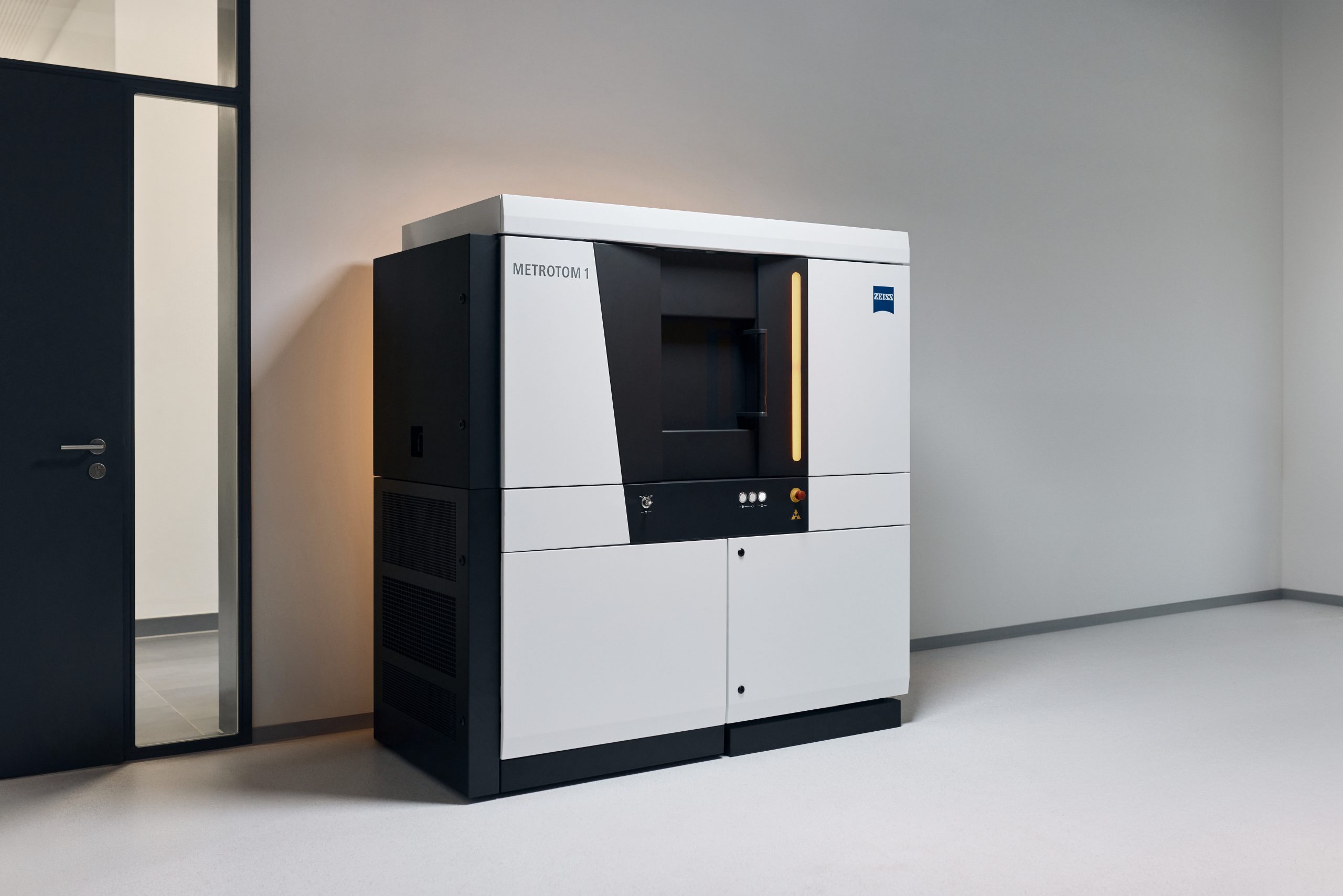

CT & X-Ray ZEISS METROTOM 1

METROTOM 1

Non-destructive inspection of internal structures, defects and dimensional characteristics.

View METROTOM 1
3D Scanning ZEISS T-SCAN hawk 2

T-SCAN hawk 2

Portable laser scanning for large, complex and difficult-to-access components.

View T-SCAN hawk 2

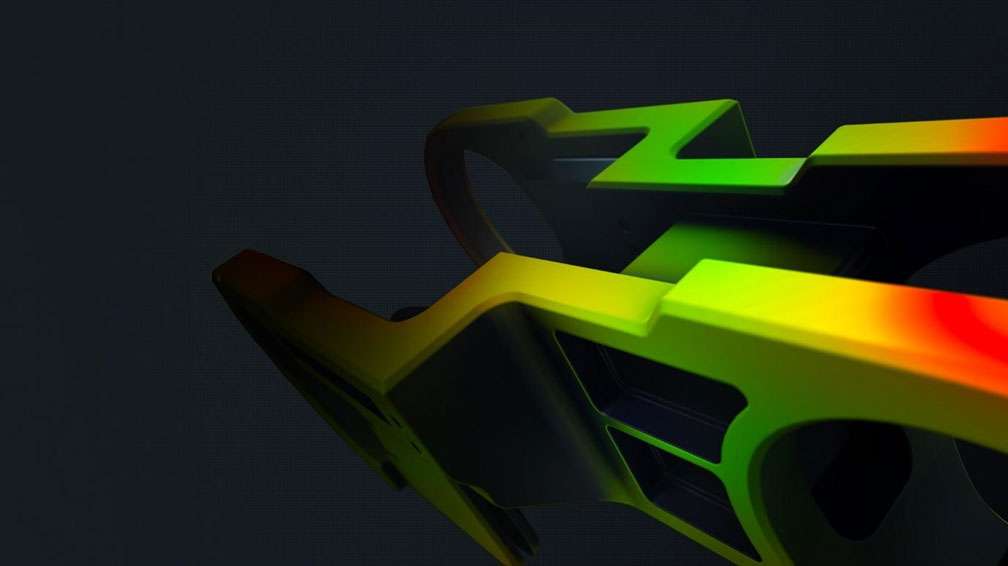

Inspection Software ZEISS INSPECT software

ZEISS INSPECT

Analyse 3D measurement data, compare components against CAD and evaluate geometric deviations.

View ZEISS INSPECT

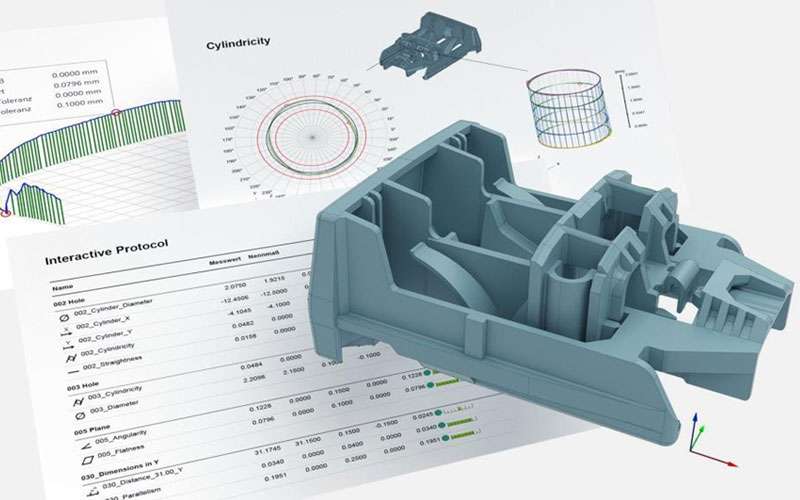

CMM Software ZEISS CALYPSO software

ZEISS CALYPSO

Create repeatable CMM inspection workflows for dimensional measurement and standard geometric features.

View ZEISS CALYPSO

Choosing a measurement system starts with the part

The appropriate inspection system depends on component geometry, material, tolerance requirements, accessibility and the type of information required.

GTS works with manufacturers to understand the inspection requirement and identify an appropriate ZEISS system for the application.

01

Application consultation

Discuss the component, tolerances and inspection objectives with our metrology specialists.

02

ZEISS technology

Access CMM, scanning and industrial CT technologies for different measurement requirements.

03

Inspection workflows

Build measurement workflows around actual manufacturing requirements.

04

First article support

Validate new tooling and components before series production.

05

Local support

Receive local guidance throughout system selection and implementation.

06

Training and service

Support your team with training, commissioning and ongoing assistance.

Explore Our Metrology Solutions

Download our portfolio to explore our ZEISS industrial metrology solutions, measurement technologies and applications for demanding manufacturing environments.

GTS Metrology Portfolio

Get an overview of our solutions, capabilities and industrial metrology applications.

Download Portfolio ↓
Let’s Talk Metrology

Have a part you need to measure?

Bring us your measurement challenge. Discuss your component, tolerance requirements and inspection objectives with our metrology specialists.

“`
