Aerospace Metrology: ZEISS Systems for Turbine Blades, Fuselage Assembly and MRO
Quality Inspection and Metrology for Aerospace
A $1.5 billion primary mirror left Earth with the wrong curve, because a single measuring instrument was trusted without a second check. NASA’s investigation into the Hubble Space Telescope traced the fault to a null corrector used during grinding, where a metering rod end cap sat 1.3mm out of position after paint flaked off one of its surfaces. That 1.3mm error was ten times larger than the design tolerance allowed, and it shipped anyway, because nobody cross-verified the measuring device against an independent method before it flew. Every OEM in this industry now builds its quality system to catch exactly that failure mode. That is the entire justification for a metrology budget. Not compliance paperwork. Instrument accountability.
Why the Aerospace Floor Cannot Absorb Measurement Error
Tolerances on machined aerospace parts sit in the micrometre range. A CMM with sub-micron repeatability is not a luxury item here. It is the only way to prove a part will interchange with a component built by a different supplier on a different continent, to a different shift pattern, on a different day.
Interchangeability is where most quality escapes happen. A bracket that passes inspection at the supplier’s site can still fail to seat correctly during final assembly, because the supplier’s gauge and the OEM’s gauge disagree by a few microns. Traceability closes that gap. With measurements linked to national standards, our ZEISS systems guarantee that a 10mm reading is identical, regardless of which production site performs the measurement.
Traceability Gaps
Inconsistent measurement procedure between two suppliers is the most common cause of parts that pass source inspection and then fail to fit at final assembly. Standardising the gauge, not just the tolerance, removes the failure mode.
Design & Simulation
ATOS 3D · ZEISS INSPECT
Engineers building a digital twin need scan data that matches CAD without manual clean-up. The ATOS 3D scanner captures full-field surface data in a single pass and feeds it straight into ZEISS INSPECT for a nominal-actual comparison against the design model. That comparison is what tells a stress engineer whether the simulation still holds once the part leaves the mould.
Manufacturing & First Article Inspection
ZEISS CONTURA · MICURA
Stringers, frames and ribs get produced in volumes that make sample inspection a losing strategy. A ZEISS CONTURA switches between tactile scanning and optical inspection on one platform, so a shop does not need two separate stations for datum probing and freeform surface capture. For small, geometrically demanding parts such as fuel injector components, the ZEISS MICURA runs sub-micron active tactile scanning with a micro-stylus, which is the only realistic way to hold tolerance on a part that size.
Assembly Alignment
Laser trackers · Photogrammetry
Wing sections and fuselage panels do not fit on a CMM table. They get aligned in position using laser trackers and photogrammetry, checking rib and spar location against the jig before final fastening. Get this stage wrong and the airframe carries a built-in stress concentration for the rest of its service life.

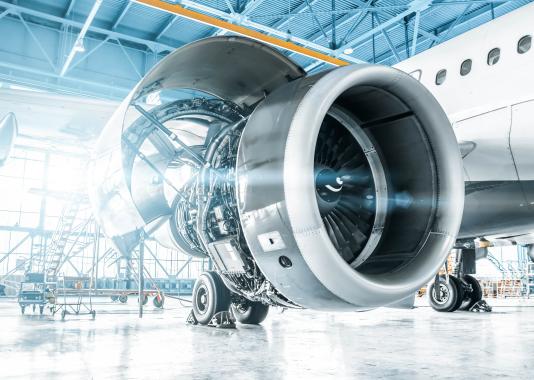

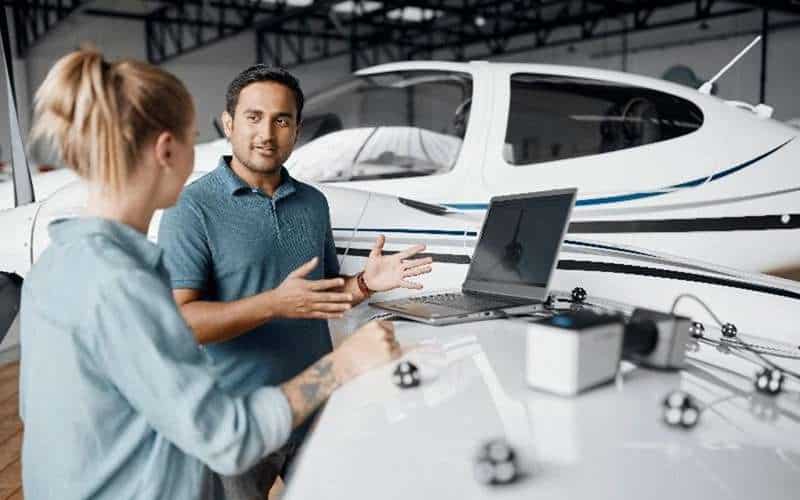

Maintenance, Repair & Overhaul
Portable scanning · ZEISS Reverse Engineering
An ageing fleet generates parts with no surviving CAD file and no spare in stock. Portable scanning captures the worn geometry, ZEISS REVERSE ENGINEERING turns the point cloud into a usable CAD-ready model, and the part gets reproduced without waiting on an OEM back order. Turnaround on an MRO floor is measured in hours the aircraft sits grounded, not in inspection convenience.
Research & Development
Digital Image Correlation
Material qualification for a new alloy or composite layup needs deformation data under load, not an engineer’s estimate. Digital image correlation replaces strain gauges that take days to rig and still only report a handful of discrete points. A full-field optical rig reports the whole surface at once and overlays it directly against the simulation.
ROI on Optical Scanning
ATOS deployments in aerostructure inspection are commonly projected to return their capital cost within two years, driven by scan times as low as ten minutes per part and the reduction in rework this makes possible.
-
Hidden geometry & internal defects
METROTOM, industrial CT
Turbine blades carry internal cooling channels that a surface scanner cannot see. Composite layups can hide delamination or porosity below a surface that looks flawless. A METROTOM industrial CT system solves this by capturing the full volume of the part in one scan, inside and outside, without cutting it apart. That single capability changes the destructive testing bill on a composite programme from “cut every tenth part” to “cut none of them.”
GD&T Inspection Services: Measuring the Relationship Between Features, Not Just the Features Themselves → -
Reflective & low-stiffness materials
Non-contact capture
Aluminium reflects a laser beam around a part rather than back to the sensor, producing noisy data that an inexperienced operator will mistake for a bad scan. Composites and thin aluminium panels also deform under clamp force, so a heavy-handed fixture introduces the very error the inspection was meant to catch. The fix is procedural as much as it is hardware: gentle fixturing, matte coating on composite surfaces, and switching to non-contact capture where clamping risk is high.
-
Thermal drift on the shop floor
ZEISS DuraMax
A metal part expands as the shop warms up over a shift. A stationary CMM on a granite table resists this because granite does not move much with temperature, but a portable device working next to a machining centre needs active temperature compensation built into the hardware, not a correction applied after the fact in software. The ZEISS DuraMax is built for this environment specifically, sealed against oil mist and dust and rated to operate reliably between +15°C and +40°C.
-
Supply chain fragmentation
Shared measurement standard
A tolerance stack-up error rarely shows up at the supplier. It shows up at final assembly, three or four handoffs later, when nobody can say which station introduced it. The only defence is a shared measurement standard and shared software across every site in the supply chain, so a deviation report from a supplier in one country reads the same way as one from a supplier in another.
-
Inspection speed vs production rate
ZEISS CALYPSO
Manual CMM programming is slow, and a stalled inspection cell holds up everything behind it. ZEISS CALYPSO builds inspection routines offline from the CAD model, so the programme is validated before the part ever reaches the machine. That is the difference between a CMM that gates production and one that keeps pace with it.
What This Means for Your Quality Plan
None of this is optional on a certified aerospace production line. The equipment choice determines whether your inspection process holds up under audit or becomes the finding. Global TechSolutions supplies, installs and services the full ZEISS aerospace range in Singapore, from the CONTURA and MICURA on the CMM side through to METROTOM CT and ATOS optical scanning, with local calibration and training included.
