First Article Inspection Service: Getting the Report Right Before Full Production Starts

Why First Article Inspection Matters

A first article is more than the first part to come off a new production setup. It is the point at which the manufacturer can establish whether the production process, tooling and resulting component are aligned with the engineering definition before full production begins.

A new mould, machining fixture, casting die or manufacturing process can produce a component that appears correct visually while still missing dimensional or geometric requirements. Small deviations can then be repeated across hundreds or thousands of subsequent parts.

First Article Inspection helps identify those deviations before the production run becomes expensive to correct.

This is particularly relevant where customers require formal inspection documentation before approving production, where new tooling has been introduced, or where a supplier is qualifying a new manufacturing process.

What Goes Into a First Article Inspection Report?

A useful FAI report should provide a clear relationship between the engineering drawing, the measured characteristics and the resulting inspection status.

The exact documentation requirements vary by customer, industry and quality system, but a comprehensive first article inspection normally needs to address the characteristics that define whether the component conforms to its design requirements.

• Dimensional characteristics
  Linear dimensions, diameters, radii, distances and other defined dimensions.
• Geometric tolerances
  Requirements such as position, flatness, perpendicularity, roundness and profile.
• Datums and feature relationships
  Measurement results need to be established against the correct reference structure.
• Material information
  Material certifications and traceability may form part of the wider inspection package.
• Process documentation
  Supporting production or process records may be required alongside dimensional results.
• Inspection traceability
  Measurement results should be associated with the relevant part, drawing, inspection method and report.

Ballooned Drawings Make the Report Easier to Follow

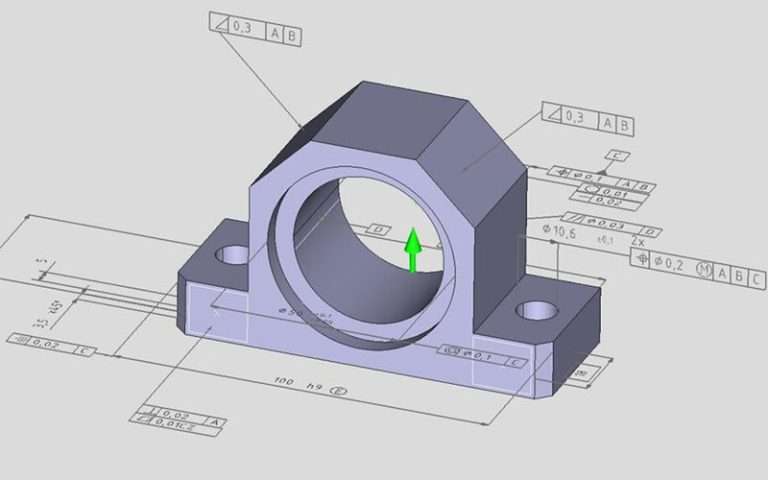

Ballooning assigns a numbered characteristic to each relevant requirement on the drawing. The same characteristic number can then be used within the inspection report.

This creates a direct relationship between the drawing and the measurement results, making it easier for engineers, quality teams and customers to verify that the required characteristics have been addressed.

Choosing the Right Measurement Method Changes the Report

First Article Inspection does not automatically mean using a coordinate measuring machine for every characteristic. The measurement method should be selected according to the geometry of the part, the characteristics that need to be verified and the type of information required.

The appropriate approach may also combine multiple technologies. A machined component, for example, may use CMM measurement for critical datums and GD&T while another component may benefit from 3D scanning or CT because of its geometry.

What Actually Slows a First Article Inspection Report Down?

The measurement itself is only one part of the FAI process. Delays can occur before the part is measured, during inspection planning or when the resulting data has to be interpreted against the engineering requirements.

Turnaround expectations should therefore be established around the actual inspection scope rather than treated as a fixed time for every part.

The First Article Inspection Workflow

A structured workflow helps connect the engineering definition to the final inspection report.

CMM vs 3D Scanning vs CT for First Article Inspection

There is no single measurement technology that is ideal for every first article. The right approach depends on what needs to be proven about the component.

ZEISS Metrology Solutions for First Article Inspection

First Article Inspection can involve different measurement technologies depending on the part and its inspection requirements. The current GTS ZEISS portfolio includes CMM, optical 3D scanning and industrial CT systems that can be applied to different FAI scenarios.

Where First Article Inspection Is Commonly Used

FAI is relevant wherever a manufacturer needs documented evidence that a new, modified or newly qualified production part conforms to its engineering requirements.

How to Prepare a Part for First Article Inspection

Providing the relevant engineering information before the inspection begins can help the measurement team establish the inspection scope and identify potential issues early.

A Good FAI Report Should Make the Decision Easier

The value of a first article inspection report is not simply the quantity of measurements it contains. The report needs to make it clear what was measured, what requirement was being checked and whether the resulting characteristic conforms.

When the drawing, measurement data and report structure are aligned, the result becomes a useful engineering record rather than a collection of disconnected numbers.

That becomes particularly important when the first article is being used to approve a new tool, qualify a supplier, validate a manufacturing process or release a component for full production.

First Article Inspection Questions

First Article Inspection Is About More Than Measuring the First Part

The first article represents an important checkpoint between manufacturing preparation and full production. If the tooling, process or setup is producing an incorrect geometry, discovering the problem after thousands of parts have been produced is considerably more difficult than identifying it on the first part.

A properly planned FAI therefore starts before the measurement machine is switched on. The drawing needs to be understood, the relevant characteristics identified and the appropriate inspection technology selected.

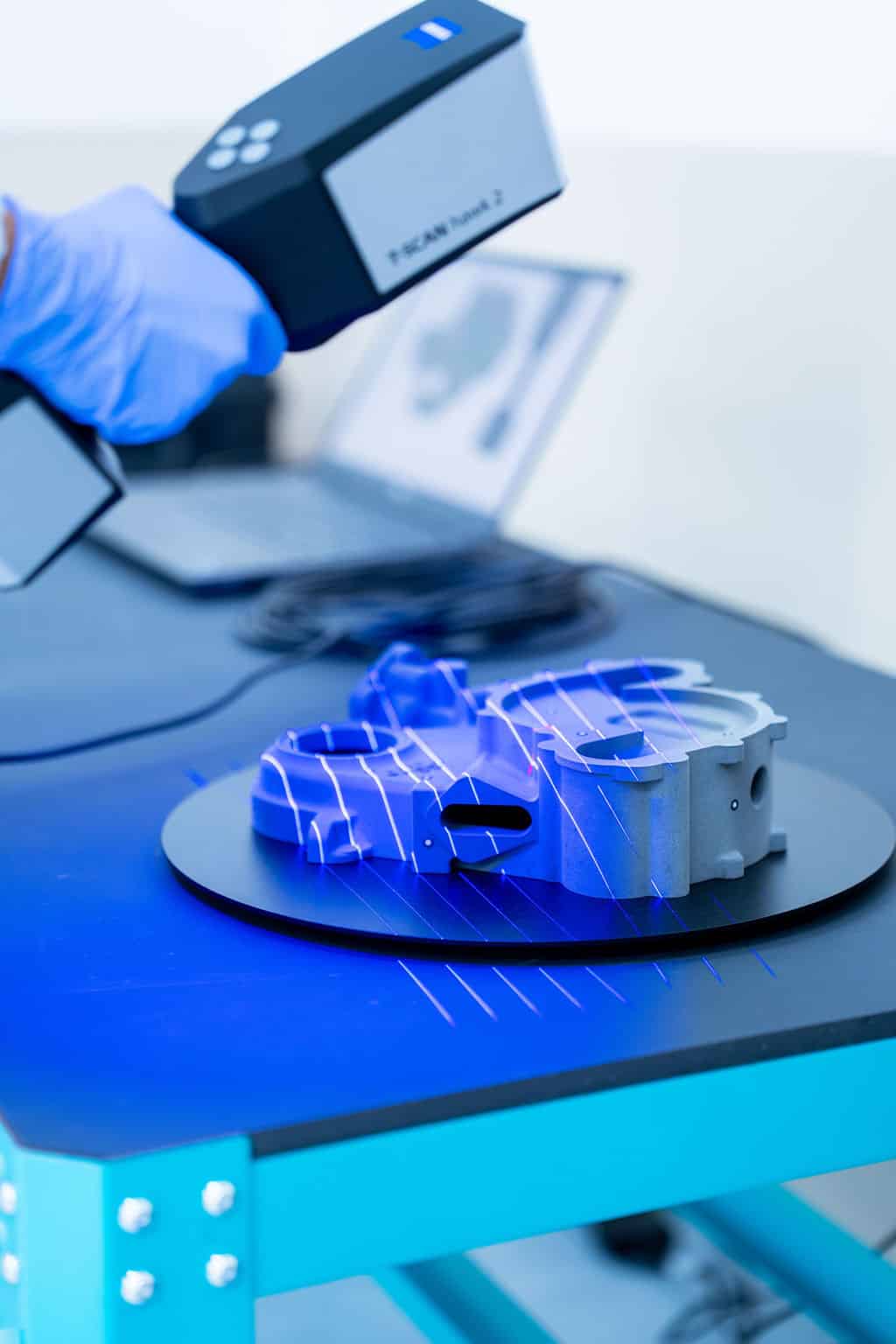

CMM measurement can provide controlled dimensional and GD&T evidence. 3D scanning can capture complete surface geometry and support CAD comparison. Industrial CT can provide access to internal structures that conventional external measurement cannot reach.

The final report then brings those measurement results back to the engineering requirements so that the manufacturer and customer can make a clear decision before full production starts.
